17. How are the control structure made?

In this chapter, we discard some of the already familiar control structures and get acquainted with a non-standard, but commonly-running, CASE source. (Solution of CASE FORTH under the name of Charles Eaker came to immortality.) It is recommended to read this chapter to those who want to get intimate acquaintance with translating words or control structures. Those who do not, they can enter the description of the operation of the CASE (see 17.5.1). you can use CASE keywords whenever you need them without full understanding.

17.1. Running words
The controls work with a conditional and unconditional branch. Both are behind you, in the parser, looking for the branch address (this is the field field parameter). Branching addresses are relative to the address of the field parameter (so say how many bytes of the parameter should jump). This is good because the jumping parameterization does not depend on the title of the jump at the memory.
The two words:

An example makes it easier to understand. Let's say, so we define a word:

: PELDA BEGIN A KETTO AGIN;

(here, ONE and KETTO are defined, not immediate words).
Let's say the PELDA parter starts at 2000. At:

• to the 2000 address the one code field address,
• the 2002 KETTO code title,
• the 2004 BRANCH code field title for 2004 (because you need to go back to the beginning of the cycle),
• the address for 2006 is in the BRANCH field parameter.

BRANCH must go back to the 2000 absolute address. In the field parameter, this address is relative to the parameter address (2006), so the field parameter value will be 2000-2006 = -6.
After the BRANCH, the value of the parameter will be -6 even if the EXAMPLE parameter does not start at 2000 but at any other address. Therefore, relative addressing is good.
The parser is closed by the code field of the word S (in this case at the 2008 address); this will finish the title interpreter to interpret the word.
Let's look at a parody of a known word:

Source #S:

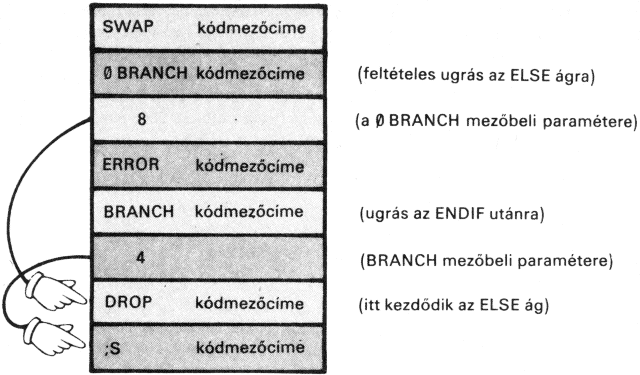

: ERROR SWAP IF ERROR ELSE DROP ENDIF;

paramezõje:

In addition to the parameters of BRANCH and 0BRANCH, it is also worth noting that some words (BEGIN, ENDIF) do not include any code field addresses in the parsing, their task is only to indicate where to jump from UNTIL or ELSE.

17.2. Checks
The check words are called "ERROR", which interrupts all QUITs in error (see section 13.3 ). In addition to the error indicator, the ERROR should also specify a fault number that reflects the nature of the error. There are the corresponding error messages in the ranks of the reader's 4th queue.
The word COMP checks whether the control structures are actually used in translation mode. source:

:? COMP (---)
   STATE @ 0 = 17? ERROR;

To match the keywords correctly, make sure that the opening keyword (say BEGIN) puts a number on the stack, your business name (BEGIN eg 1), and AGAIN is only willing to compile if the vermen finds 1 . Pairing Word:

:? PAIRS (n ---)
   - 19? ERROR;

The translation words at the end of the translation must be left in the same way as they found it. To control this, a separate system variable, CSP, is used. The instantaneous value of the pointer is a

! CSP (---)

so we can do it in the variable; the

? CSP (---)

so you can check that the stack is the same as the CSP position. The source of the two words:

: CSP SP @ CSP! ; :? CSP SP @ CSP @ - 20? ERROR;

The! CSP : the? CSP ; call it; at CASE we will see that they may be useful at other times.

17.3. BEGIN, AGAIN, and UNTIL
A BEGIN do not translate anything into the parsing; it is his job to put the words he paired with him into where to jump. Thus, the essence of BEGIN's action: when translating it, it makes the value of the word puncture on the stack; this is the title where the first word of the cycle nucleus will be translated, so it will have to jump back. The stack is still worth 1, this is BEGIN's business card.

: BEGIN    ? COMP    HERE    1 ; IMMEDIATE

( if you do not use it while translating) (BEGIN "skips") (jumper address) (contact)

The relative address of the jumpback is entered by the word BACK:

: BACK    HERE    -    , ;

(skip title ---) (this is the parameter) (deducted from the address on the vermin , so) (we get a relative address) (the received address is stored in the parameter)

So AGAIN:

: AGAIN   1? PAIRS   COMPILE BRANCH   BACK ; IMMEDIATE

(jumper contact ---) (translation) (was BEGIN?) (translating the jumping word) (skip title translation)

UNTIL differs from AGAIN only in that return jump is conditional.

: UNTIL   1? PAIRS   COMPILE 0BRANCH   BACK ; IMMEDIATE

(jumper contact ---) (translation) (was BEGIN?) (translating the jumping word) (skip title translation)

17.4. IF, ELSE, and ENDIF
IF translates the word 0BRANCH into the parser, which jumps to the ELSE branch or ENDIF after the false signal. However, when IF is compiling, you still do not know where the ELSE branch or ENDIF will be, the 0BRANCH parameter will be entered later. At the IF moment, we can only help ourselves to note the vermin where it will have to go to the jump title:

: IF	(--- parameter address contact) (when translating)
COMPILE 0BRANCH (conditional jump)
HERE   0,   2 ; IMMEDIATE	(parameter address) (leave the parameter location) (contact)

If there is no ELSE, ENDIF places the relative bounce address in the specified parameters:

: ENDIF   ? COMP   2? PAIRS   HERE   OVER -   SWAP! ; IMMEDIATE

(--- parameter address contact) (at translation) (this is the absolute jump address) (now relative to) (we have reset the parameter)

If ELSE is present, the situation is more complicated:

• The IF must be bound by the ELSE after all.
• The ELSE indicates the end of the branch, so it is absolutely necessary to go after ENDIF.

In the IF then the ELSE will enter the jump address, "literally" in the same way as ENDIF. And ENDIF receives the address from the ELSE where the jump address should be.

: ENDIF   2? PAIRS	(par address1 contact --- par address2 contacts) (translation)
COMPILE BRANCH (end of true branch)
HERE   0,	(this address is given further) (location of the jump address)
(now shows the word counter for the beginning of the false branch)
SWAP 2	(the worm: par.cim2 par. title 1 2)
[COMPILE] ENDIF (Address Relative to Parent Address 1)
2 ; IMMEDIATE	(contact)

17.5. A non-standard structure: CASE

17.5.1. How to use it?
The CASE structure is to handle different things depending on a value (called this branch value). The word CASE waits for the grove to run the truncation value at which the action depends. Each branch is described between words OF and ENDOF; such OF branches may be any. When running, the OF at the worm is given to determine the branching value of the given OF branch. If the branch value assigned to CASE does not deliver the program to any of the OF branches, then the last ENDOF and the ENDCASE ending the end of the structure will be executed. The splitting value is dropped by the real OF from the stack, so if the other part runs, it is on top of the stack and ENDCASE will remove it.
For example, if German-speaking users are G, English is E, French is indicated by letter F, this may be a saying:

:    CASE      71 OF (letter G)         "auf Wiedersehen"      ENDOF      69 OF (letter E)         "good bye"      ENDOF      70 OF (letter F)         "au revoir"      ENDOF      (other)         . " what to do with you? "    ENDCASE ;

17.5.2. Source of Keywords
As far as we are concerned, the novelty is that the CASE structure has an ever-repeating element, the OF ... ENDOF branch. After each ENDOF you have to go to ENDCASE, but of course (when translating) you do not even know where it is. Thus ENDCASE should enter the jump addresses on the stack of parameter addresses; how many places you need to call the CSP variable to calculate it. Endcases and ENDOFs postpone jump addresses for ENDOFs and ENDOFs. the OFs generated jumps. Since this post-entry is done by ENDIF, if you get the parameter address and a 2-denominate contact, ENDCASE and ENDOF will mobilize it for this task.

: CASE   ? COMP   CSP @   ! CSP   4 ; IMMEDIATE	( for example, CSP is corrupted , fits) (preserve the eedeti value) (CSP is the current value of the pointer) (contact)
: OF   4? PAIRS	(contact name --- parameter address contact)   (when translating) (was CASE?)
COMPILE OVER (comparing the branch value to)   COMPILE = (with the value)   COMPILE 0BRANCH (if not = after ENDOF)
HERE   0,	(here comes the jump address) (location of the jump address)
COMPILE DROP (if this is the true OF, the branching)
5 ; IMMEDIATE	(No longer required) (About OF)
: ENDOF   5? PAIRS	(par. address1 contact1 --- par.cím2 contacts2)   (translation) (was OF?)
COMPILE BRANCH (end of OF branch to ENDCASE)
HERE   0,   SWAP 2	(we go) (par address2) (parameter location) (preparing for ENDIF)
[COMPILE] ENDIF
4 ; IMMEDIATE	(contact2)

If the last OF branch is not real, then the program will go after the last ENDOF. There is no further question here: what is there, it is accomplished. During the branching value the vermin will be forgotten - ENDCASE will be discarded.

: ENDCASE   4? PAIRS
COMPILE DROP (this will get you running at a)
BEGIN     SP @ CSP     @ = 0 =   WHILE     2	(program if none of the OFs was the real one) (and left the branching value) (ENDOF jumpers) (until ENDOFs had been sold) (the stack on the stack) (contact with ENDIF )
[COMPILE] ENDIF
REPEAT   CSP! ; IMMEDIATE	(so we kept the CSP on the bug) (original value)

  .
