# 3-Chip Descrambler Theory of Operation

Before the 3-chip was a 3-chip descrambler

What is NTSC?

The relationships between vertical, horizontal, and subcarrier components within a video signal are established by RS-170A (NTSC). For proper lockup (shift-free viewing), these relationships must be maintained throughout any descrambler.

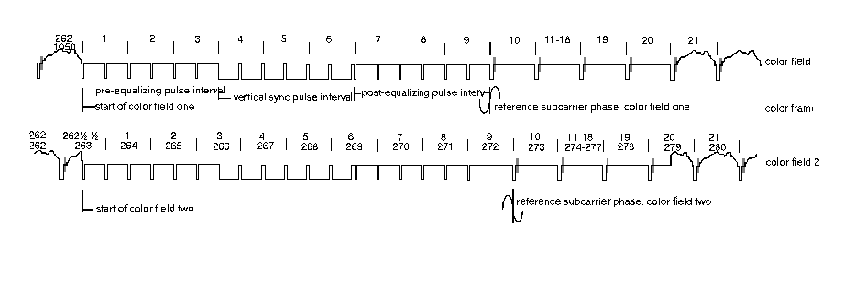

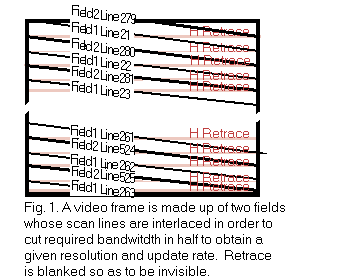

NTSC  video displays 29.97 frames per second. Each frame is made up of two fields yielding a total of 59.94 fields per second. Each field consists of 262.5 horizontal lines scanned across the field from left to right, top to bottom, at a rate of 15,734.2637 per second. The half line at the end of the first field and at the beginning of the second field causes the lines of the two fields to "interlace." The two interlaced fields combine to form a frame made up of 525 distinct scan lines (figure 1).

This clever system updates the image viewed on a TV screen ~60 times per second to avoid a flickering or jumpy appearance, provides 525 scan lines for good resolution, and yet requires one half of the bandwidth of a non-interlaced system with the same image update rate and resolution characteristics.

It is important to note that our discussion of NTSC pertains to an "unmodulated" video signal. An unmodulated video signal compares to a modulated video signal in the same way as an unmodulated audio signal compares to an AM radio signal. Modulated signals must be received by a tuner in either your audio system or TV. Unmodulated signals must be provided directly to your audio or video system via what engineers call "base band" inputs.

The base band video signal is a voltage measured in IRE units. There are 140 IRE per volt. As the voltage approaches 100 IRE the picture becomes brighter. As the voltage falls to 7.5 IRE the picture approaches black. During retrace (the time during which the picture tube's electron beam returns to the left after scanning a line or to the top after scanning a field) the signal drops to 0 IRE in order to "blank" the beam and make the retrace invisible. Sync pulses contained within the blanking interval fall to -40 IRE. The -40 to 100 IRE range corresponds to a one volt peak-to-peak signal (between -0.286 to 0.714 VDC if the signal is properly clamped).
RS-170A alters and augments RS-170 to enable color video transmissions. The key component is the addition of a color subcarrier signal to the monochrome signal to specify the color hue and saturation of objects in an image.

The color subcarrier is a 3,579,545±10 Hz sine wave impressed upon the monochrome signal. The net effect is that the video signal is a sine wave of varying amplitude, DC offset, and phase (see figure 2). The amplitude (peak-to-peak size) of the sine wave describes how deeply an object in an image is saturated with color (is it deep red or just a hint?). As the peak-to-peak voltage of the sine wave increases the displayed color becomes deeper. The phase (precise timing) of the sine wave describes the hue of the object (is it red, blue or some other color?). The DC offset voltage of the sine wave determines how bright an object is. As the offset voltage increases the displayed object becomes brighter.

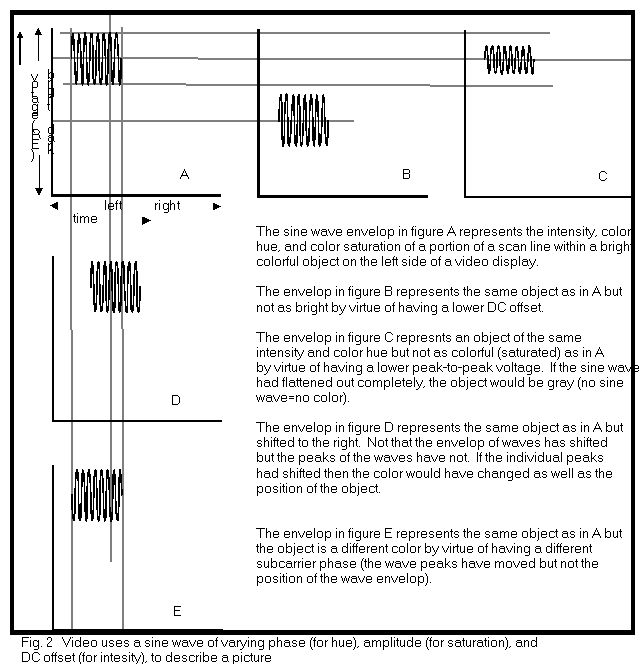

To determine color hue and saturation, video monitors and other color decoding equipment compare the color subcarrier's phase and amplitude with a reference signal. The reference signal is called the "burst" and is transmitted in the video signal during the blanked retrace period between horizontal lines known as the horizontal interval (figure 3).

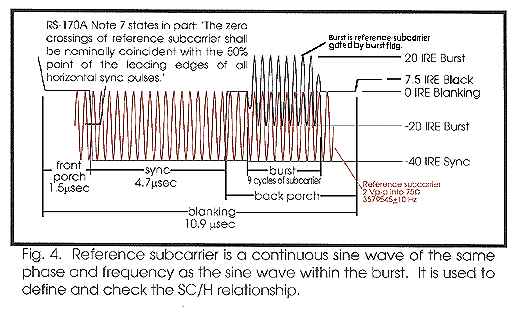

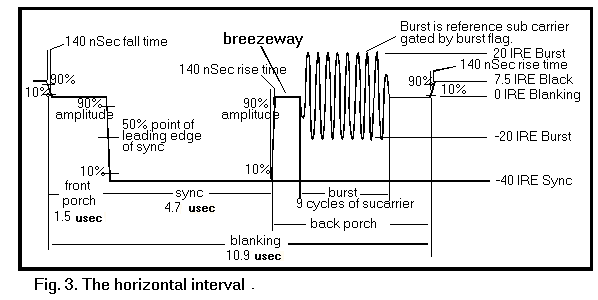

Specific Relationships: The burst defines a sine wave of 40 IRE peak-to-peak amplitude and 180° phase. The timing of the burst relative to horizontal sync (called SC/H Phase) is clearly defined by RS-170A Note 7 (see figure 4). The horizontal and color subcarrier frequencies were chosen so that there are 227.5 cycles of the subcarrier sine wave during the entire horizontal line (including blanking). The half cycle causes the phase of the burst to alternate 180° with each successive scan line within a field. Alternating the relationship in this manner minimizes the visibility of the color subcarrier within the brightness components of the picture.

Subcarrier's timing relationship with the rest of the video signal is defined by NTSC during the vertical interval which spans a period equivalent to 20 horizontal lines at the beginning of each field (see figure 5). There are 59.94 color fields and 29.97 color frames per second.  The starts of color field one is defined by a whole line between the first equalizing pulse and the preceding horizontal sync pulse. The start of color field two is defined by a half line between the first equalizing pulse and the preceding horizontal sync pulse.  These half lines give rise to interlacing.

Figure 5.

The relationships between components within the NTSC video signal are complex, fragile, and important. A descrambler must be carefully designed, built, and used in order for these relationships to remain intact. If not, problems will creep in to the finished descrambled video product.

Designing the 3-chip

At the time of design I decided to build a "descrambler" using minimal parts so volume production could be attained at a low cost. In order to build a descrambler with few parts there must be an intelligent part (like a microcontroller) and a few other parts to feed it information it would need to reconstruct video. In looking at the NTSC standard, let's examine what kind of information we would need to collect in order for a microcontroller to *understand* it's surroundings.

The Challenges

NTSC Issues:

1. How to detect the horizontal blanking interval with normal and sync-supressed video.
2. Where are we in the frame? Best way to find out.
3. Simple video clamp.

Descrambling Issues:

1. Should I just shift the sync or re-insert it?
2. How to best capture data (cheaply)
3. Invert the video for under \$.50.
4. Run all the above while trying to create a video frame.
5. Create a list of priorities in the 3-chip descrambler world.

For the NTSC issues we shall look at parts of the schematic of the 3-chip to see how all three issues were resolved.

1. How to detect the horizontal blanking interval with normal and sync-supressed video.

1. Most importantly, how do I tell where the horizontal blanking interval is in both suppressed and normal sync? The EASY answer might be the color burst. After repeated attempts by people to use the color burst and the incredible cost to lock on such a *small* signal I felt it would be pointless to do so. I therefore determined that another not-so-apparant pattern in NTSC video was the fact that the SYNC portion of the video had to have a VERY fast fall and rise time (like 150nS). Since this is the ONLY pattern of fast rise and fall in a video line over time I chose this to be the method for finding a horizontal blanking interval.

The circuit:

Figure 6.

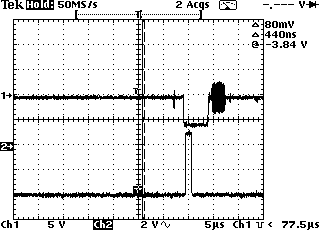

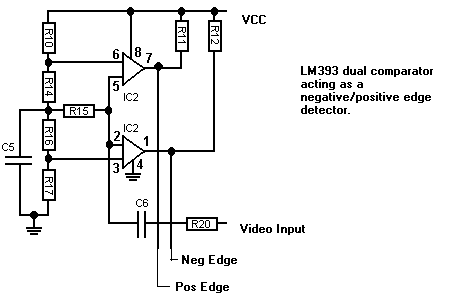

A closer look at the negative edge detector (with only black video present):

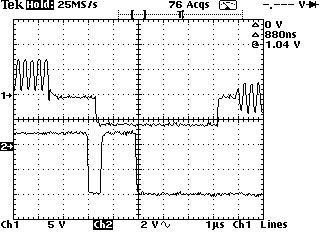

Negative Edge in the Real World (real moving video)

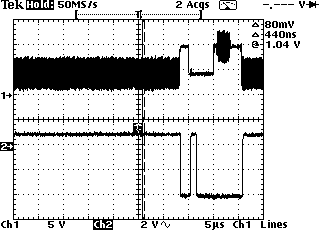

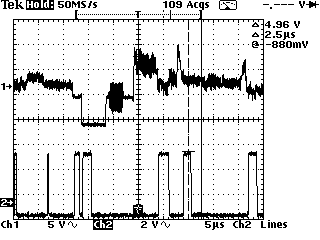

How Negative Edge works on scrambled video:

Now, a look at the Posistive Edge Detector:

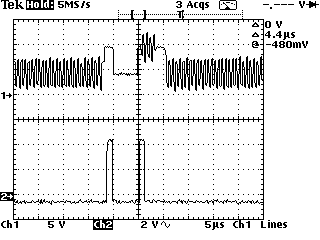

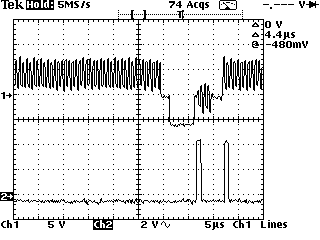

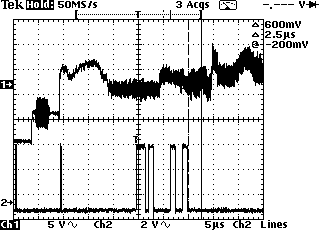

A look at the positive detector on a scramble line of video:

As you can see from the above waveforms that we can sync up our circuit using the positive and negative edge detects as it ALWAYS occurs in the same place for both normal and sync-supressed syncs.

2. Where are we in the frame? Best way to find out.

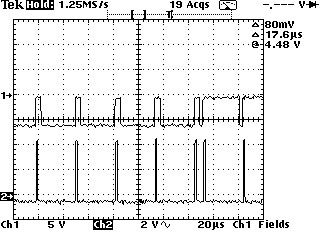

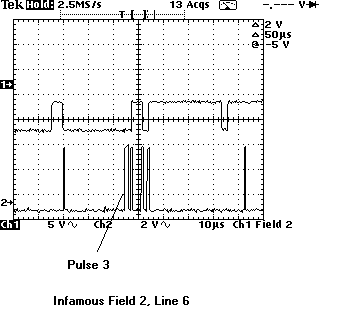

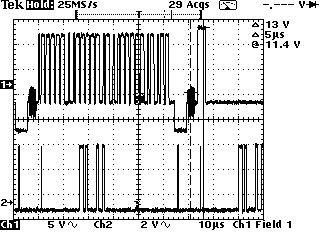

This one took some thought. The NTSC standard recommends using the last line of the field to determine which field in the frame you are looking at. Since we have a neg/pos detector it would only be reasonable to look for some other event that happens which could be EASILY detected while we create a line. Line 6 of the second field offers an interesting (short time) detectable signal. Look below:

Positive Edge Detect:

Negative Edge Detect:

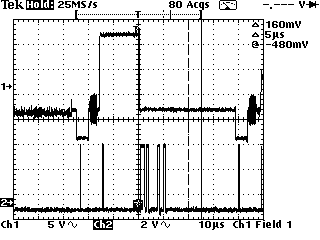

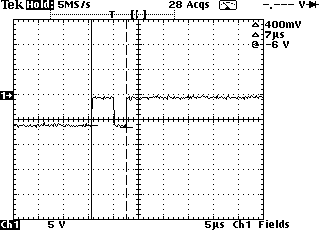

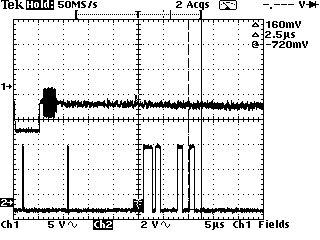

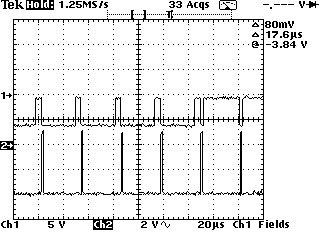

Notice this whole event lasts ONLY 7uS (perfect for a few reads from a port on a PIC)

Looking through the commented code you will find

3. Simple video clamp.

So the video does not float everywhere I kind of needed to design a type of clamp which would keep the video in one place even though the dc reference was lost. This was rather simple as I chose to "reinsert" the sync rather than lower it (see descrambler challenges). The clamp control is low ONLY when sync is present, and the entire VBI. The circuit below shows the clamp circuit with the invert amplifier (for circuit reference):

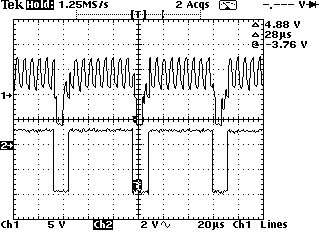

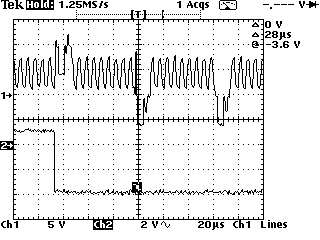

This is the clamping action during 3 lines of video.

This is how the clamp works from the last sync of field 1 to the vertical blanking interval of field 2.

The above demonstrates a simple clamp worth no more than \$.12. Mission accomplished.

Now comes the mean stuff. Descrambling issues.

Descrambling Challenges

1. Should I just shift the sync or re-insert it?

This one took a while to figure out. If I reinsert the sync will it happily co-exist with now foreign video? Will the color burst get hacked on video which is not up to spec? Will the sync to video relationships get screwed up even with a clamp? Well, after some experimenting the answer is no. I found that if this unit was to CREATE TWO frames of video and then so to speak SHIFT that frame UNTIL it matches with the original video AND can be dynamic enough to allow for small timing differences there should be no problem. Easier said than done. This brought about my worst nightmare. Build a circuit which can essentially rebuild the sync including the front porch, back porch, sync, and re-insert the color burst. (That's easy part). Timing all those decisions in a PIC was rough. Below is the circuit which re-creates the sync from scratch:

R19 controls either SYNC or BLACKLEVEL for the sync. (front porch, back porch, sync)
The color burst switch controls a switch allowing the chroma signal to pass

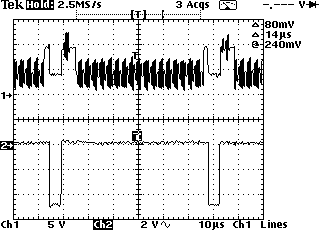

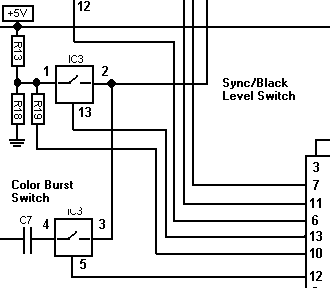

Below is the R19 Sync/BlackLevel Control.

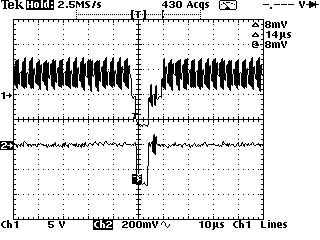

The actual NEW sync at pin 1 of the switch looks like this:
(notice the color burst at pin 1, WHY? Well look at the commented code
The best way to ensure the color burst was at the SAME BLACK LEVEL
was to actually open the color burst switch and the SYNC SWITCH (BLACKLEVEL SELECTED)
at the same time. This essentially placed the color burst at the same level as the black level thereby
making a happy :-) final sync.

2. How to best capture data (cheaply)

First let's look at the data we need to capture (for invert and HL10-13 data):

Fortunately the data has fast slew rates so we can use our neg/pos edge detector to tell us if there is data.
In the commented source code you will find that this data on Lines 10 through 13 is used to determine if
we are on a SSAVI channel and if we should sample line 20.

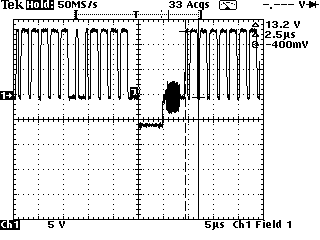

Well, the negative or positive edge detector work WELL for fast slew rates. Look below:

(trace 2 is the negative edge detector)

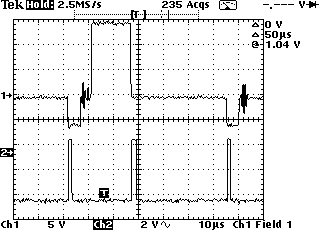

Below is Line 20 (the active invert line) and with it on trace two is the negative edge detector.

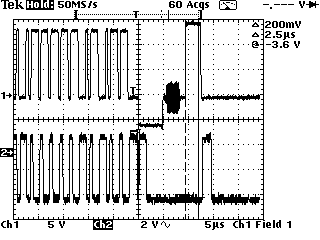

Notice how we can use the neg/pos edge detector not only for lockup but also inversion/
data.

Using a simple polling procedure of the negative edge detector on line 20 we can determine whether this field
is inverted or not (this field is normal video).

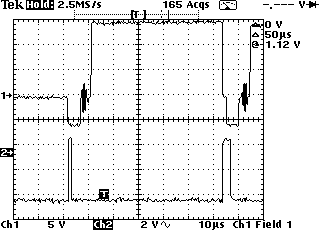

This is what the negative edge detector outputs for INVERTED video:

(Note: You are looking at line 20 with my ZTAC headend in INVERT mode on SSAVI.

Well, that's a cheap method for detecting inversion/data \$0.00 (cost absorbed in sync correction)

3. Invert the video for under \$.50.

Here is the circuit:

Pretty simple, Q2 is the cheapest transistor around (general purpose).

Now for the contest. Design an amplifier using ONLY transistors for input, inversion, and output (follower). The circuit which best passes normal video/inverted with the least distortion and part count (cost) wins. Your design MUST work in the exsisting 3-chip descrambler and will replace ALL current transistor amplifiers.

The prize is \$100 and a free kit (or a free kit for the new 3-chip member). I am taking all costs for this contest out of my pocket, so it will not cost this project a dime.

All entries will get posted on this website and the winners design will be incorporated in the new 2-chip descrambler (ooppss)?

Please submit all entries by November 1,1998.

Judges will be selected amoung engineers not participating in the contest.

May the cheapest, clearest, easiest to build design win!

Now that you know what the circuit does lets look at commented code, line by line.

COMMENTED CODE

The code is VERY difficult to read so I have made MANY pictures so ALL of you can make changes you need. There are many routines to accomplish the rebuilding of video and make decisions. The program consists of a MAIN program which is an endless loop creating 2 fields of a video signal. MAKEHLINE actually makes a horizontal sync, line, inverts the video, checks for inverted video, changes the VCO, etc. MAKEHALFLINE creates the halfline ..... SETMODE makes decisions based on information gathered in HLINE like ..... MAKEVBI makes the vertical blanking interval. We will look at the most complex routine first MAKEHLINE (make horizontal line), this will give you an idea what is going on inside the 3-chip most of the time.

;3chip.src   rev 4

MAKEHLINE

;
;
; MAKEHLINE
;
;

; Port A
; 0 - PLL frequency control
; 1 - VidLevel - an experimental port used to try and clamp video better (not used in this code)
; 2 - Troubleshooting
; 3 - Manual Invert control (MANUALINVERT)

; Port B
; 0 - VNX-    Normal Video Switch (this passes video through to output as it comes in)
; 1 - CLV-    Clamp Voltage (this selects 0=0V and 1=2.5V)
; 2 - NED-    Negative Edge Detect (rapid falling signal)
; 3 - PED-    Positive Edge Detect (rapid rising signal)
; 4 - BSV-    Black/Sync Voltage (Black =1 , Sync = 0)
; 5 - VIX-      Inverted Video Switch (this passes the inverted video from Q2)
; 6 - BUX-    Burst Switch (this passes the burst through, which is AC coupled so it can be clamped!)
; 7 - BSX-    Black Level/Sync Switch

; SOME USEFUL EQUATES
;
; MAKESYNC = BSX (just make sync level)
; MAKEBURST = BSV + BUX + BSX (this puts the BURST right on the black level)
; PASSVIDEO = VNX + CLV + BSV (normal video passes, its clamped, Black Voltage)
; PASSINVERT = CLV + BSV + VIX (inverted video passes, its clamped, Black Voltage)
; PASSBLACK = BSV + BSX (video is just black level)
;
;
;
;
; NED = 00000100b - Negative Edge Detector
; PED = 00001000b - Positive Edge Detector
;
; BIT EQUATES
; VIDEOKAY          EQU    MODE.0    - if 1 then 3-chip is genlocked onto video signal
; VIDEOINVERT   EQU    MODE.1    - invert the video during active lines
; VIDEOBLACK    EQU    MODE.2    - make the video black during active lines
; WANTSINVERT    EQU    MODE.7    - user wants to invert video

; MANUALINVERT    EQU    PORTA.3

;Description of Variables
; MODE defines the mode the unit is currently in (look above for specifics)
; OscDecision holds the value of the NED+PED for running the oscillator during a sample time after negedge.
; FastCnt is incremented every time the oscillator is sped up, if it is sped up 128 times then it concludes that
;                we are no where near locking up and invokes a code timing adjustment of .2uS (faster lockup)
; SlowCnt (same as fastcnt) but used to quickly slow down oscillator.
; temp is a crap var for counting, etc...
; Data is a place to store the result if data was actually found on the line (HL10 to HL13)
; Line6 holds temp data telling if we found field 2 , line 6 (line6=ped+ned if found)
; isInverted tells the main program if the line was inverted/not (0 = inverted) (HL 20)
; FindLine6  (PED bit) is set if we dont know where we are and MakeHLine has to find Field2, line 6
; makelines is passed to this routine telling it how many Hlines to build...

MAKEHLINE

;Make the Sync Signal

movlw       MAKESYNC  ; normally make sync (horizontal sync pulse)
btfss         VIDEOKAY    ; IF 3-chip is not locked on THEN
movlw       PASSVIDEO  ; let video pass through (errors)

movwf       PORTB           ; Start hsync pulse (cool)

movlw      00001100b    ; read comparitors (rise/fall) , everything else out.
tris            PORTB  ;

; turn on my troubleshooting pulses
movlw       11111011b
tris             porta             ; turn on my troubleshooting pulses
bsf             troubleshoot
bcf             troubleshoot    ; pulse 1 on OSCILLOSCOPE

; Look below at the FIRST pulse, this is where we are in a line

The first pulse on the left is where we are now.

nop

; sample the negative edge of the comparitor

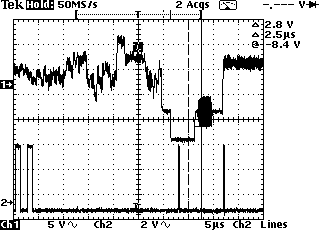

This is a picture of the negative edge detector
Sorry, I only have a 4-channel 400Mhz DSO (but no interface), so look above at pulse 1 in the hsync.
If you compared the above two images you would find that pulse one is just near the end of the
negative comparitor pulse.

The following description of the code and how it maintains lock is incorrect.  A corrected description will follow this one.

**********************************************************************

; the code below works as follows: (O = OscDecision)
; if the neg. edge of a horizontal sync is detected in section A but not B then O.2 is 0 (slow down oscillator)
; if the neg. edge of a horizontal sync is detected in section A and B then O.2 is 1 (speed up oscillator)
; if the neg. edge of a horizontal sync is detected in section B but not A then O.2 is 1 (speed up oscillator)
; if the neg. edge of a horizontal sync not detected in either section then O.2 is 1 (speed up oscillator)
; if the pos. edge of a horizontal sync is detected then O.3 is 1 (slow down oscillator)
;
;
; in other words, if the neg pulse is found in A but not B then we are doing good, slow down and let it
; cross into section b so we can speed it up again!   (*** Wrong ***)
; This provides a very accurate PLL.

; section a
movf    PORTB, 0        ; samples for negative edge of hsync
iorwf   PORTB, 0
iorwf   PORTB, 0        ;
xorlw   NED                    ;

; section b
iorwf   PORTB, 0        ; There should be no neg here if we are on time...
iorwf   PORTB, 0        ; There is some delay until edge detect
iorwf   PORTB, 0        ;   will return back to normal.
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
movwf   OscDecision    ; this is where the final sample is stored.

movlw   MAKEBURST    ; time to make the burst
btfss      VIDEOKAY        ; IF video is not locked up THEN
movlw   PASSVIDEO    ; just pass the video
movwf   PORTB           ; Sync up, let burst pass by

btfsc   OscDecision, NED        ; IF negative edge found in a & b (where it should not be) THEN
bsf     PORTA, 0                        ; speed up oscillator 50Khz
btfss   OscDecision, NED        ; ELSE  (negative edge found in section a but not b, where it should be)
bcf     PORTA, 0                        ; slow down oscillator 50Khz
btfsc   OscDecision, PED        ; IF we heard a positive edge THEN
bcf     PORTA, 0                        ;   slow down oscillator 50Khz (were okay)

incf    FastCnt,1                         ; how often are we speeding up?
btfss   OscDecision, NED        ; IF we are slowing down THEN
clrf    FastCnt                             ; reset fast count

incf    SlowCnt, 1                          ; how often are we slowing down?
btfsc   OscDecision, NED        ; IF we are speeding up THEN
clrf    SlowCnt                                ; reset SlowCnt

; After 127 fast oscillators or 127 slow oscillators we have to do something to speed this lockup!
; Notice this routine provides .2uS of course code time tuning!

btfsc   FastCnt, 7       ; IF we have done 128 fast oscillators (1/2 a field) THEN
goto    ActiveLine                  ; use up .6uS total!
btfsc   SlowCnt, 7      ; IF we have done 128 slow oscillators (1/2 a field) THEN
goto    ActiveLine                ; use up 1.0uS total!

; IF we have done neither 128 fast or slow then we only use up .8uS here

; Sync is OVER!

************************** Corrected Description ********************

To understand how lock is maintained, you need to understand the relationship of the PEDs/NEDs to the sync and to the code. The code speeds up the oscillator or slows it down depending on where it sees the NED.  How does this affect the NED? It doesn't! The NED will happen at the falling edge of the sync regardless of how fast the oscillator is running.  What changes with oscillator speed is WHEN we look for the NED.  If the oscillator is running too fast, then we are looking for the NED too early and if the oscillator is running too slow then we are looking for the NED too late.  The NED itself does not change!  Magicboxes says that the NED should be locked to the transition from a to b or directly in front of the section b.  Let's look at the code again and re-comment it.

; section a
movf    PORTB, 0             ; samples for negative edge of hsync
iorwf   PORTB, 0
iorwf   PORTB, 0              ;
xorlw   NED                       ; If a NED was detected, then B2=0, if not then B2=1 because of XOR

; section b
iorwf   PORTB, 0        ; There should be no neg here if we are on time...
iorwf   PORTB, 0        ; There is some delay until edge detect
iorwf   PORTB, 0        ;   will return back to normal.
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
movwf   OscDecision    ; If a NED was detected in a (B2=0) and was not detected in b, then B2 remains 0

; If a NED was detected in a (B2=0) and was also detected in b, then B2=1, 0 or 1=1

; If a NED was NOT detected in a (B2=1) and was not detected in b, then B2=1

; If a NED was NOT detected in a (B2=1) and was detected in b, then B2=1, 1 or 1 =1

movlw   MAKEBURST    ; time to make the burst
btfss      VIDEOKAY        ; IF video is not locked up THEN
movlw   PASSVIDEO    ; just pass the video
movwf   PORTB           ; Sync up, let burst pass by

btfsc   OscDecision, NED        ; If B2=1(see conditions above) then
bsf     PORTA, 0                        ;  speed up the osc 2khz(not even close to 50 Khz)
btfss   OscDecision, NED        ; ELSE  (negative edge found in section a but not b, where it should be)
bcf     PORTA, 0                        ; slow down oscillator 2Khz
btfsc   OscDecision, PED        ; IF we heard a positive edge THEN
bcf     PORTA, 0                        ;   slow down oscillator 50Khz (were okay)

Magicboxes assumes that if we see a NED in both a and b that the oscillator is going too slow and should be speeded up.  If we speed it up, what will happen to the relationship between the NED and the a and b sections of the code?  Remember, the NED will stay the same and WHEN we sample (the a and b sections) will shift to the left because the code executes faster and the a and b sections will happen earlier. Eventually, the a and b sections will shift to the left far enough that the NED is only in section b. This will still give us a "1" at OscDecision and will keep the oscillator speeded up.  Eventually, the a and b section will shift to the left until the NED is not in either section, which STILL keeps the oscillator in the fast mode. At this point, we have lost lock and the a and b sections will shift left until a new sync comes along.  Eventually, the a and b sections will find the next sync and the a section will move into the NED.  Aha, at this point, in a and not in b, the OscDecision will switch to "0" and slow the oscillator down. The a and b sections will now shift to the right(code is executing slower) until the a section (and b section)is no longer in the NED.  The OscDecision will switch back to "1" and speed up the oscillator.  This is the point that the 3chip actually locks at. The trailing edge of the NED is locked to the START of the A section, not the a/b junction.  If the oscillator locks to the a section alone, then what purpose does the b section serve. NONE!!  The b section of code does nothing and merely confuses an already confusing piece of code.  Compare this section of code with NTSC rev7t1a or PAL code and you will see that they all do the same thing, lock on the beginning of the a section.  Some of Jens' PAL code actually locks on the PED at the end of the sync instead of the NED at the start of the sync.

; ACTIVE VIDEO

ActiveLine

movlw     PASSVIDEO        ; If invert/black level fails then pass normal video
btfsc       VIDEOINVERT     ; IF video invert flag (in mode) is set THEN
movlw     PASSINVERT      ; pass inverted video
btfsc       VIDEOBLACK      ; IF video blackout flag (in mode) is set THEN
movlw     PASSBLACK       ; pass nothing
btfss       VIDEOKAY            ; IF the 3-chip is NOT locked onto the signal then
movlw     PASSVIDEO        ; only pass the video
movwf     PORTB           ; Set up the active line with config from above

; setup the oscillator speed control
movlw   11111010b     ; Enable the Oscillator speed control to work
tris    PORTA

bsf     troubleshoot
bcf     troubleshoot    ; pulse 2 on TRACE 2

Notice where pulse 2 is? That's right, right AT the point of the active video line.
and thats where we are right now. The oscillator is also controlled during this period.

; we have A LONG WAY TO GO!
; next up, Finding our place in the field, find data, and inverted video....

; FINDING THE DATA

Find the data... Notice the length of time between pulse #2 and #3? That is how long the unit looks for data!
Data is ONLY used when found on lines 10 through 13.

nop

movlw   17
movwf   temp
movf    PORTB, 0        ; If this is line 6 then no transitions, if data both PED+NED are set!

sampleloop
iorwf   PORTB, 0        ; check for data for awhile.
decfsz  temp,1
goto    sampleloop

movwf   Data                ; place to store the status of potential data found

; Where are we in the FRAME?
; You had better appreciate this image as it only happens once! (a real pain).
; Below you will see an image which will only every happen ONCE when you flip a channel:

This is the imfamous line 6.

; notice the dead video before pulse 3, In line 6 there should be nothing there as above.
; The following statement makes sure that

xorlw    NED+PED ; (both this time)
movwf   Line6        ; if we are on line 6 then line6 = NED+PED  (remember this for later!)

; CHECK FOR INVERTED VIDEO

bsf     troubleshoot    ; PULSE 3 - INVERT WINDOW

movf    PORTB, 0        ;  Negative edge in line when field is not inverted
iorwf   PORTB, 0        ;    These inclusive ors give us a healthy window
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
andwf   isInverted, 1    ; isInverted.2 = 1 when not inverted, 0 when inverted

bcf     troubleshoot    ; END OF PULSE 3

; Look below at the figure. You are looking at Line 20 which controls invert. As you can see the third
; pulse window falls during the Invert level transition. If the pulse falls as below, then the video is not inverted
; and NED  becomes 1 and  isInverted.2=1 . If the video IS inverted then this pulse does not change and
; then NED would have been 0, then isInverted.2 = 0

Notice the 3rd pulse above (not inverted video)

nop
nop

; BACK TO LINE 6

bsf     troubleshoot    ; PULSE 4 - LINE 6 RISING EDGE

movf    PORTB, 0        ; This detects line 6 rising (look at pulse 4 above)
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0

bcf     troubleshoot    ; END OF WINDOW

xorlw   NED                ; This will make W= NED +PED if line 6 is rising here (which it is)
andwf   Line6, 1        ; This will keep LINE6 = NED+PED if we are on line 6.

; MANUAL INVERT

; this routine is normally run throught this procedure as a NOP in all cases. It simply reads the switch
; and sets an invert flag if so.

btfss   MANUALINVERT  ; IF RA3 is 0 (button pushed) THEN
bsf     WANTSINVERT ;   set inversion flag

; BACK TO LINE 6 STUFF

; this is between pulse 4 and 5 (notice the long quite area)

movf    PORTB, 0        ; Line 6 should have NO W  bits set!
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0

nop

xorlw   PED+NED    ; this will make PED+NED if on line 6
andwf   Line6, 1        ; line6=PED + NED if it is still line 6

nop

bsf     troubleshoot    ; PULSE 5 - FALLING EDGE OF LINE 6

movf    PORTB, 0        ; Check for falling edge of line 6 (look at pulse 5 as above!)
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0

bcf     troubleshoot    ; PULSE 5 - END OF THAT WINDOW!

xorlw   PED                ; you guessed it !, W = PED +NED if on line 6
andwf   Line6, 1        ; and yes, line6 = PED+NED if still finding we are on line 6

btfss   MANUALINVERT  ; just bullshit as above, nops got boring.., checking the switch again.. fun..
bsf     WANTSINVERT ;
btfss   MANUALINVERT  ;
bsf     WANTSINVERT ;

bsf     troubleshoot    ; PULSE 6 - LINE 6 RISING EDGE

movf    PORTB, 0        ; Check for rising edge again! (look at the last pulse, #6)
iorwf   PORTB, 0
iorwf   PORTB, 0
iorwf   PORTB, 0

bcf     troubleshoot    ; END OF PULSE 6
nop

xorlw   NED            ; w = NED +PED if on line 6 (BTW if you now think NED stands for Ned Flanders then please
; move away from your computer...)
andwf   Line6, 1    ; line6 = NED+PED if on 6

; BLOW TIME, LINE 6

movlw   26
movwf   temp
movf    PORTB, 0        ; Line 6 is quiet (if we are on line 6 - look above after pulse 6)

sampleloop2
iorwf   PORTB, 0
decfsz  temp, 1
goto   sampleloop2

andwf   Data, 1    ; why not, was there any data there too?, and it on....

xorlw   PED+NED        ; you know...
andwf   Line6, 1            ; finally, if we are on line 6 then line6=NED+PED

rlf     Line6, 0            ; Move NED to PED position in W
andwf   Line6, 1        ; If PED in here is 1 then we are on line 6!!!!!!!!!!!!!!!!!

rlf     Data, 0               ; Move NED to PED position in W
andwf   Data, 1           ; If PED in Data is 1 then we found data on this line!!!!

movf    FindLine6, 0     ; Are we searching for line6??????? (PED =1 if so)
andwf   Line6, 1            ; Line6 (PED bit) is 1 if we have to now make up lines 7-10

btfsc   FindLine6, PED   ; IF we are looking for line 6 THEN
incf    makelines, 1      ;   keep searching (add an extra line to create until we find it!)

movlw   11111011b
tris    PORTA           ; Shut off the Oscillator control

; END OF THE ACTIVE LINE OF VIDEO

movlw       PASSBLACK
btfss         VIDEOKAY        ; IF 3-chip not locked on THEN
movlw       PASSVIDEO    ; pass normal video
movwf       PORTB           ; create front porch of next sync.

decf        makelines, 1
btfsc        Z               ; IF no more hlines to create THEN

nop
btfsc         Line6, PED      ; IF Line6 found THEN
clrf            FindLine6            ;   Stop searching for it.

movlw       4
btfsc          Line6, PED      ; Create 4 more lines (7-10) for main pgm
movwf       makelines        ;

goto          MAKEHLINE

SETMODE

SETMODE
; Checks for vsync errors and sets FindLine6

nop
nop

btfsc   Error, PED              ; IF there was an error from MAKEVSYNC THEN
incf     ErrorCnt, 1              ;   add 1 to error counter
btfsc   ErrorCnt, 2             ; IF 4  errors THEN
bcf      VIDEOKAY             ; stop descrambling
movf    Error, 0
btfsc   ErrorCnt, 2        ; IF we have had 4 errors in a row THEN
movwf   FindLine6        ;   look for line6

btfsc   FindLine6, PED  ; IF we are looking for line 6 THEN
clrf      ErrorCnt      ;   restart counter

btfss   Error, PED        ; IF there was not an error THEN
incf    VideokayCnt, 1  ; increment the good video counter

btfsc   WANTSINVERT    ; IF the user pressed the invert switch THEN
bsf     DataLine12             ; say we saw data on line 12
btfsc   WANTSINVERT     ; IF the user pressed the invert switch THEN
bsf     DataLine13            ; say we saw data on line 13

btfss   DataLine12            ; IF no  data on line 12 detected THEN
clrf    VideokayCnt            ; clear the video okay counter
btfss   DataLine13
clrf    VideokayCnt

btfsc   VideokayCnt, 1    ; IF 2 good frames have been heard THEN
bsf     VIDEOKAY            ; then allow DECODING
btfsc   VideokayCnt,1    ; IF 2 good frames have been heard THEN
clrf      VideokayCnt      ; Clear this counter

movlw   41
movwf   temp

modeloop1
decfsz  temp, 1         ; waste some time..
goto    modeloop1

clrwdt

retlw   1                        ; BACK TO MAIN.

MAKEHALFLINE

MAKEHALFLINE
; draws a halfline (end of field one)

movlw   MAKESYNC     ; time to make the sync
btfss     VIDEOKAY        ; IF 3-chip not locked on THEN
movlw   PASSVIDEO    ; just pass video
movwf   PORTB             ; change mode.
nop

movlw   5
movwf   temp

makehalflineloop1
decfsz  temp, 1
goto    makehalflineloop1        ; waste time..

nop

clrwdt

movlw   MAKEBURST    ; time to make the burst
btfss     VIDEOKAY    ; IF 3-chip is not locked on THEN
movlw   PASSVIDEO ; pass video
movwf   PORTB           ; change mode

movlw   5
movwf   temp

makehalflineloop2
decfsz  temp, 1
goto    makehalflineloop2

movlw   PASSBLACK        ; time to send black level
btfss   VIDEOKAY                ; is the 3-chip bla bla bla not locked on then
movlw   PASSVIDEO            ; pass video
movwf   PORTB                     ; change mode

goto    makehalfl1                ; this is called tuning at 3AM in the morning.
makehalfl1                                   ; I hated some writting some of this fricking code...
goto    makehalfl2
makehalfl2
goto    makehalfl3
makehalfl3
goto    makehalfl4

makehalfl4

movlw   PASSBLACK    ; This is called bad tuning at 3am, this code does nothing but
btfss   VIDEOKAY           ; was used until I looked at my screwup here on a scope.
movlw   PASSVIDEO     ; kept this useless code cuz I was too lazy to remove it...
movwf   PORTB           ; Useless

movlw   28
movwf   temp

makehalfloop2
decfsz  temp, 1
goto    makehalfloop2    ;waste some time

movlw   PASSBLACK ; this was WORSE alignment than the above (probably about 2am)
btfss     VIDEOKAY        ; kept as I got fed up with recalculating the above loop
movlw   PASSVIDEO
movwf   PORTB           ; Useless

nop
nop

retlw   1                        ; back to MAIN

MAKEVBI

; Generates the vertical blanking interval
; makes sure we are actually writing this vsync when the real one is happening

MAKEVBI

; make 6 pre-equalizing pulses  - Lines 1 to 3

movlw   MAKESYNC        ; time to make sync level
btfss    VIDEOKAY            ; IF 3-chip not locked THEN
movlw   PASSVIDEO        ; just pass video
movwf   PORTB           ; change mode

bsf    troubleshoot
nop
bcf    troubleshoot

movlw   2
movwf   temp
makevbiloop1
decfsz  temp,1
makevbiloop1        ; waste time

movlw   MAKEBLACK        ; you know, pass black if okay, pass video if not...
btfss    VIDEOKAY
movlw   PASSVIDEO
movwf   PORTB           ; change mode

movlw   45
movwf   temp
makevbiloop2
decfsz  temp,1
goto   makevbiloop2

movlw   6               ;  for the vsyncs next
movwf  OscDecision         ; confusing but i recycled the variables
decfsz  makelines, 1       ; have we made 6 yet???

goto     MAKEVBI

; Now make 6 serrated vertical sync pulses - Lines 4-6
; This is where we check for errors!

bsf     MODE,PED  ; this is set for anding the result later (a vsync pos det. mask)
makesync

movlw   MAKESYNC        ; make vsync now...
btfss     VIDEOKAY
movlw   PASSVIDEO
movwf   PORTB           ; change mode

movlw   28
movwf   temp

goto    makevbi1
makevb1
goto    makevbi2
makevbi2
goto    makevbi3
makevbi3
goto    makevbi4
makevbi4
bsf        troubleshoot            ;nop

clrw

nop
lookforpossync
iorwf   PORTB, W        ; sample for vsync pulses
decfsz temp, 1        ;
goto   lookforpossync             ;  pos sync detected during sample means we are not lined up...

bcf    troubleshoot            ;        nop

movwf   temp           ;  crap
andwf   Mode    ; if we got an error then the PED bit  will be 1
movwf   temp        ; save the result
movlw   2               ;  old code crap
btfsc   temp, PED      ; IF positive edge was detected  in vsync THEN
bcf     Mode, PED  ;   clear the mask bit we set earlier
btfsc   temp,PED
bsf     Error, PED   ;   set the error bit, let SETMODE clean things up

movlw   PASSBLACK  ; sync is over... pass black
btfss   VIDEOKAY
movlw   PASSVIDEO
movwf   PORTB           ; make mode change

movlw   4
movwf   temp

makevbiloop3
decfsz  temp,1
goto    makevbiloop3        ; waste time

movlw   6
movwf   makelines
decfsz  OscDecision, 1        ; sorry for the confusion, a recycled variable ...

goto    makevsync

bsf    troubleshoot             ;nop

; Lines 7-9 , post equalizing pulses.

makepost
movlw   MAKESYNC
btfss   VIDEOKAY
movlw   PASSVIDEO
movwf   PORTB           ; change mode to sync again

clrwdt

bcf    troubleshoot        ;nop
nop

movlw   2
movwf   temp

makevbiloop6
decfsz  temp,1
goto    makevbiloop6        ; waste time

movlw   PASSBLACK
btfss    VIDEOKAY
movlw   PASSVIDEO
movwf   PORTB           ; change mode to black if video okay

movlw   43
movwf   temp

makevbiloop7
decfsz  temp,1
goto    makevbiloop7

decf    makelines,1
btfsc   Z       ;IF we made all 6 THEN

goto    makevbi10
makevbi10
goto    makevbi11
makevbi11
goto    makevbi12
makevbi12
goto    makepost

MAIN

MAIN

movlw   PASSVIDEO
movwf   PORTB           ; allow video to pass

movlw   00001100b    ; setup port b
tris    PORTB

movlw   11111111b    ; port a is all reading
tris    PORTA

clrf    MODE                ; do not try to decode

movlw   00001011b
option                            ; set up watchdog timer, prescaler to WDT, 1:8

MAKEFRAME

bcf     VIDEOINVERT          ; disable inverted video mode during MAKEHLINE

movlw   6               ; for vbi, pre-equalizing pulses
movwf   makelines

FIELD 1

call    MAKEVBI             ; Make FIELD 1  - LINES 1-9

clrf    DataLine                ; this clears data heard in video lines (DataLine10 - DataLine15)

btfss   WANTSINVERT ; IF user does not want inverted video THEN
bsf     VIDEOINVERT  ;   enable inverted video

movlw   1
movwf  makelines

call    MAKEHLINE        ; Line 10

btfsc   Data, PED            ; IF we heard data on line 10 THEN
bsf     DataLine10            ; save that in DataLine10 bit

nop
movlw   1
movwf   makelines

call    MAKEHLINE        ; Line 11

btfsc   Data,PED            ; IF we heard data on line 11 THEN
bsf     DataLine11            ; save it in bit dataline11

nop
movlw   1
movwf   makelines

call    MAKEHLINE         ; Line 12

btfsc   Data, PED            ; IF we heard data on line 12 THEN
bsf     DataLines12         ; save it in bit dataline12

nop
movlw   1
movwf   makelines

call    MAKEHLINE         ; Line 13

btfsc   Data,PED            ; IF we heard data on line 13 THEN
bsf     DataLine13           ; save it in bit dataline13

nop
movlw   1
movwf   makelines

call    MAKEHLINE         ; Line 14

btfsc   Data,PED            ; IF we heard data on line 14 THEN
bsf     DataLine14          ; remember that...

nop
movlw   1
movwf   makelines

call    MAKEHLINE         ; Line 15

btfsc   Data,PED            ; IF we heard data on line 15 THEN
bsf     DataLine15            ; remember that...

nop
movlw   4
movwf   makelines        ; make 4 lines now

call    MAKEHLINE         ; Lines 16-19

movwf   makelines         ; don't forget makehline returns 1.

CHECK FOR INVERTED DATA

The inverted data check in MAKEHLINE is checked here

clrf      isInverted            ; this checks for the invert data...

btfsc   DataLine10     ; IF line 10 contains data THEN
bsf     isInverted, NED    ;   look at the inversion flag on line 20

nop
call    MAKEHLINE         ; Line 20
nop

btfsc   isInverted, NED    ; IF negative edge found THEN
bcf     VIDEOINVERT   ;   Normal video (remember the default is inverted from above)

movlw   1
movwf   makelines
call    MAKEHLINE         ; Line 21

clrf    isInverted
btfss   DataLine11         ; IF no data at line 11 THEN
bsf     isInverted, NED    ;   look for inversion flag on line 22

movlw   1
movwf   makelines
call    MAKEHLINE         ; Line 22   (some systems moved invert flag to line 22)

nop

btfsc   isInverted, NED    ; IF no inversion flag detected THEN
bcf     VIDEOINVERT  ;   set normal video

movlw   2
movwf   makelines

call    MAKEHLINE         ; Lines 23-24
bcf     VIDEOBLACK      ; Clearing this flag allows normal video/inverted video
nop
nop

movlw   235                ; now do 235 lines..
movwf   makelines

call    MAKEHLINE         ; Lines 25-259
bsf     VIDEOBLACK      ; No video allowed to pass, only black..

nop
nop
movlw   3
movwf   makelines

call    MAKEHLINE         ; Lines 260-262

nop
nop
nop
movlw   1
movwf   makelines         ; junk

call    MAKEHALFLINE        ; Line  263.5

nop
nop
nop
movlw   6
movwf   makelines

FIELD 2

call    MAKEVBI                     ; make the VBI (make the vsync)

nop
nop

bcf     VIDEOINVERTED        ;  no inverted video allowed now..

movlw   1
movwf   makelines

call    SETMODE            ; is the descrambler locked on properly?

btfss   WANTSINVERT     ; IF user does not want invert THEN
bsf     VIDEOINVERT      ;   enable inverted video
bcf     WANTSINVERT     ; Clear user flag

movlw   1
movwf   makelines

call    MAKEHLINE        ; Line 10
nop                     ;
nop                     ;
nop

movlw   9
movwf   makelines

call    MAKEHLINE         ; Lines 11-19
movwf   makelines

clrf    isInverted
btfsc   DataLine10         ; IF data on line 10 THEN
bsf     isInverted, NED    ;   look for inversion flag.

nop
call    MAKEHLINE         ; Line 20
nop

btfsc   isInverted, NED    ; IF inversion not detected THEN
bcf     VIDEOINVERTED  ;   Normal video

movlw   1
movwf   makelines

call    MAKEHLINE        ; Line 21

clrf    isInverted            ; clear flag.

btfss   DataLine11         ; IF line 11 has no data THEN
bsf     isInverted, NED    ;    check line 22

movlw   1
movwf   makelines

call    MAKEHLINE        ; Line 22

nop
btfsc   isInverted,NED    ; IF no inversion detected THEN
bcf     VIDEOINVERTED  ;   normal video

movlw   2
movwf   makelines

call    MAKEHLINE         ; Lines 23-24

bcf     VIDEOBLACK  ; allow video to pass now

nop
clrf    Error       ; Reset error for new vsync tests

movlw   235
movwf   makelines

call    MAKEHLINE         ; Lines 25-259

bsf     VIDEOBLACK  ; DO not pass video during these lines...
nop
nop
movlw   3
movwf   makelines

call    MAKEHLINE         ; Lines 260-262

goto    MAKEFRAME        ; back to field 1

NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP
NOP

BSF        FastCnt,7            ; lets lock on to the video real quick as the board has just turned on.

PROBLEMS
3-chip Rev 4

1.    This version above of the 3-chip program dose not support Jerrold Baseband (invert sync pedistal)
2.    This version is not properly timed in field 2 so the horizontal sync dose not lock up until about line 15.
3.    Slight video brightness levels can be noticed during high-speed mode changes due to the failed lockup.

3-chip Rev 5 (2200.src / .obj)
The new 2200 3-chip file solves all those problems and MORE!
1.    Perfect locks on EVERY LINE
2.    Perfect VBI with errors
3.    Traps for split-sync invert pedistal inversion and clamps on it
4.    The finest work I have done yet, I cannot notice ANY change in video on ANY high speed mode on both
Jerrold and Zenith using my ZTAC headend, GI - Jerrold MVP-I or MVP-II.

WHAT NEXT?

Two things actually, I will be documenting/adding commented code for both the 2200 version of code (rev 5) and PAL code. Further, as I now have the active TOCOM invert code done that will be put online as well.
I will start on the PAL code now so I don't get linched!

1. More commented source code with pictures (still got some good vbi pictures yet)
2. PAL commented source code with pictures (until its all done) [both PAL and PAL-M]
3. New Rev 5 commented source code with pictures
4. TOCOM active invert source code with pictures and comments
5. Newest 3-chip family member (the 2-chip) with GI active invert, multi-mode source code and board
6. Sound Privacy

PAL

Well, the code and explanations following took a lot of work as my Tek scope dose not like to lock up on PAL video as nicely as NTSC.

What is PAL?
(coming tomorrow)

 file: /Techref/io/video/ntsc/theory.htm, 139KB, , updated: 2000/12/13 11:43, local time: 2024/4/17 11:49, TOP NEW HELP FIND:  3.227.240.72:LOG IN

 ©2024 These pages are served without commercial sponsorship. (No popup ads, etc...).Bandwidth abuse increases hosting cost forcing sponsorship or shutdown. This server aggressively defends against automated copying for any reason including offline viewing, duplication, etc... Please respect this requirement and DO NOT RIP THIS SITE. Questions?Please DO link to this page! Digg it! / MAKE! Magicboxes Descrambler 3-chip Theory of Operation

After you find an appropriate page, you are invited to your to this massmind site! (posts will be visible only to you before review) Just type a nice message (short messages are blocked as spam) in the box and press the Post button. (HTML welcomed, but not the <A tag: Instead, use the link box to link to another page. A tutorial is available Members can login to post directly, become page editors, and be credited for their posts.

Attn spammers: All posts are reviewed before being made visible to anyone other than the poster.
 Did you find what you needed? "No. I'm looking for: " "No. Take me to the search page." "No. Take me to the top so I can drill down by catagory" "No. I'm willing to pay for help, please refer me to a qualified consultant"

.
